NOTE: This product is for digital files only. No physical parts are included. For a physical kit, please click here.
You've seen the footage of the Nautilus Drydocks sharks in action, and now it's time for you to build one of your own!
You can view the entire buildup of this shark from start to finish by clicking here.I have most of the products to build this shark listed out for purchase on Amazon. Click here!
For assembly, it is recommended to tack parts with gel CA such as the product offered by Gorilla Brand. For strength, it is also HIGHLY recommended to lay up a strip of fiberglass cloth and epoxy resin over all seams.

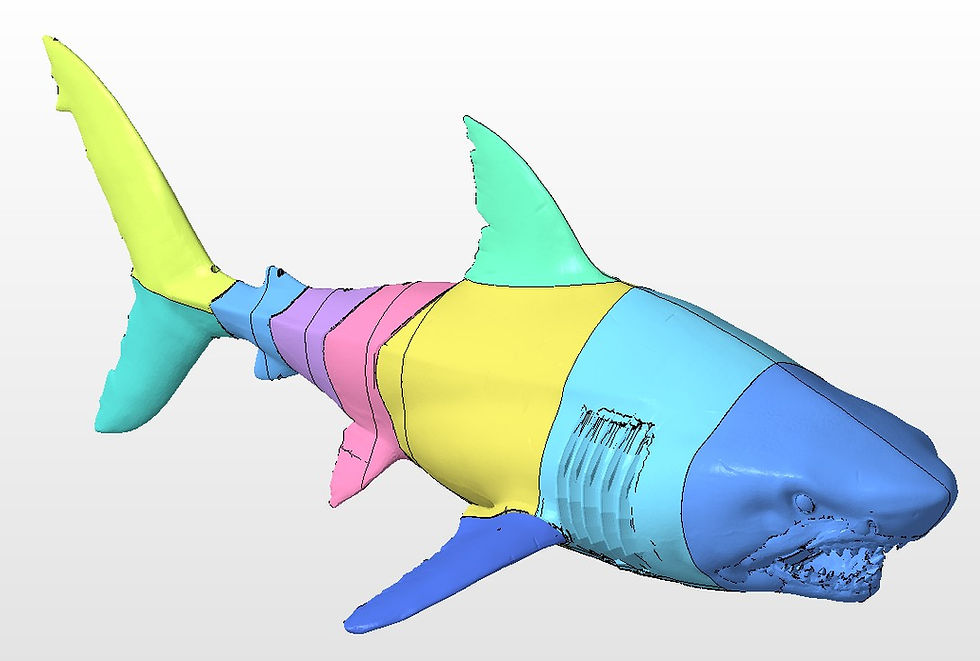

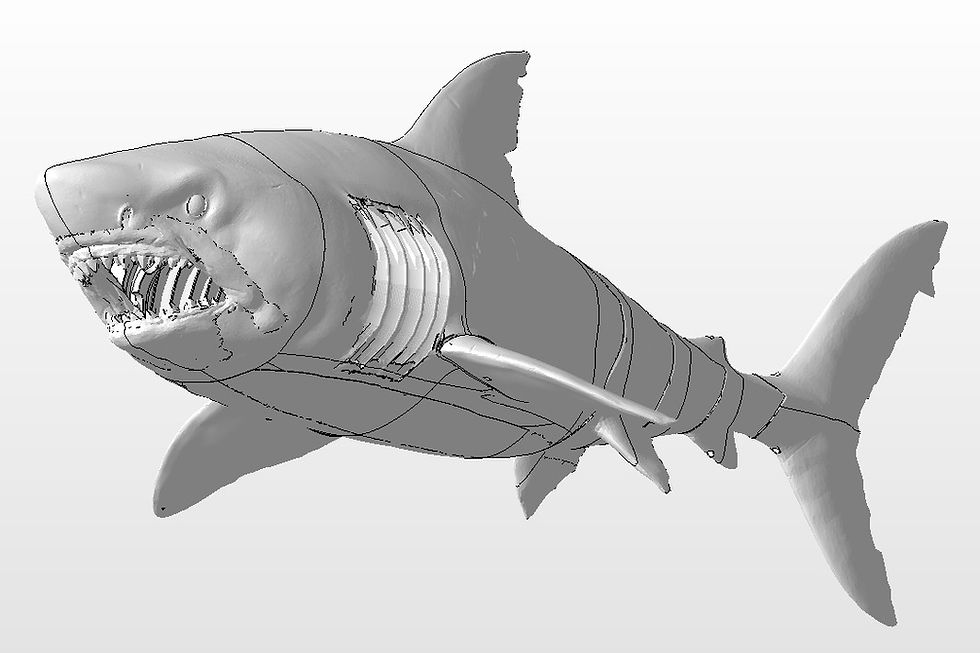

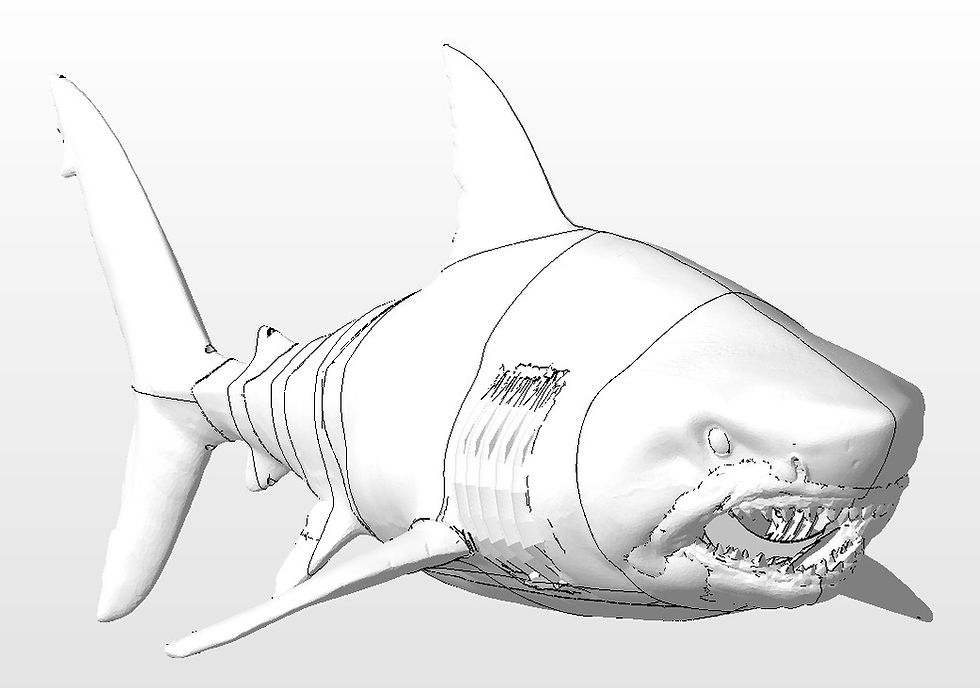

These STL files will allow you to print out your own body of the RC shark. Parts are no larger than 250mm x 250mm x 250mm, so most modern printers will have no problem handling the fabrication.
The completed shark measures:
Length: 980mm / 38.5"
Width: 365mm / 14.3"
Height: 355mm / 14"Total filament weight in ABS with supports: 2216g (just over two filament spools).
Total print time on Bambu X1C in ABS GF filament at 0.3mm resolution: 71.5hrs
It is highly recommended to print your shark in ABS, ASA or PETG plastic. While printing in PLA will provide a beautiful body, the low melting point of PLA plastic will mean that your new pet will be highly susceptible to warping if exposed to heat or direct sunlight.
Options are available to have this shark printed for you in either high detail resin, or in ultra high strength fiberglass reinforced ABS plastic. Check the Shark Body Listing for pricing and details.
38 Inch Long RC Shark - STL File Package
The following parts and components were utilized in my construction of this shark. Feel free to substitute any of these for your own needs. Most of these parts can be obtained on Amazon with a search.
- Shark body
- ApisQueen brushless thrusters x2 L/R
- Zeee 3S Lipo Battery 10000mAh 11.1V
- Clear RTV Silicone
- Stainless bolts, M4/M6
- IP65 Waterproof Project Box ABS Plastic 3.93x 2.68x 1.97 inch (100 x 68 x 50 mm)
- 8-Pin Waterproof DT Connector Male and Female
- Diamond Hobby 20A Python Brushless ESCs x2
- 3S balance port cover (eBay or DIY)
- Silicone grease
- EC battery connector (or match your battery)
- Countersink bit
- Metric taps M4/M6
- Pink Styrofoam construction board
- 1/4" Plastic sheet for tail stops
- 3/16" metal rod (brass/stainless) for tail pins
- Throttle Jockey mixer board (if you're not using a radio capable of mixing channels)
- Minimum 2CH radio, 75mhz or 900mhz. 2.4ghz is possible with an antenna extension and without ability to dive under the water.
- 3/32" brass tube for test hose nipple
- Silicone tubing for test hose
- Automotive body filler
- sandpaper
- Spray paint - dark gray, white, pink
- Hobby paint and brush - white, black and red for eyes and teeth
- Ballast stick-on weights 1/2oz 1kg
