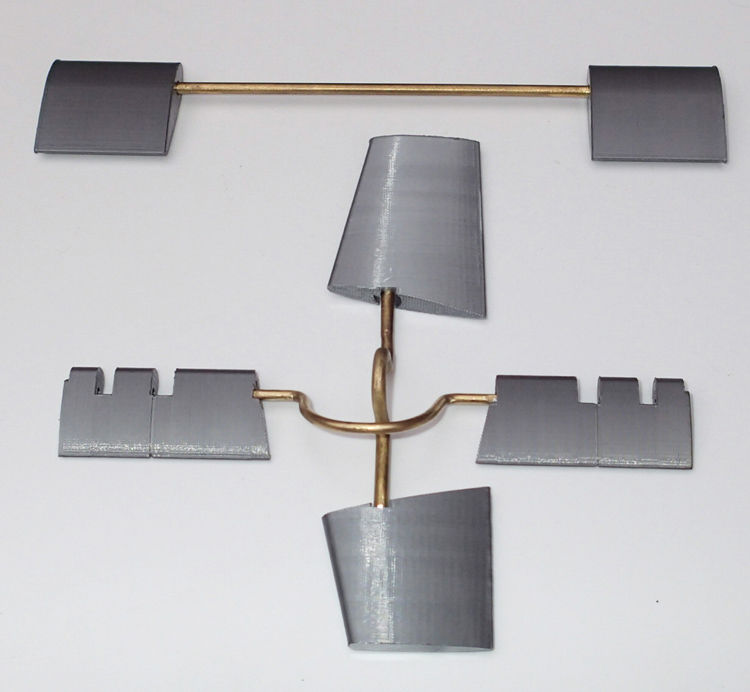

  • US Virginia-Class Submarine Kit in 1:72 Scale

    A new kit of the elite attack submarine USS Virginia done in 1:72 scale. This is a mixed-media kit that comes with a central cylinder of PVC plastic that the custom-printed parts bolt to.


    Also included in the kit is your stainless steel mounting hardware, brass photoetched detail parts and a full set of plans. Detailed instructions are also included.



    THe 3D printed parts will exhibit the striations typical of this manner of manufacturing. Final cleanup, sanding and priming is recommended prior to final painting.



    This model kit is an excellent candidate for our 3.5" diameter single-shaft SubDriver unit.



    Construction Material (3D Printing): PLA plastic
    Length: 1564 mm (61.6")
    Width of hull: 140 mm (5.5")
    Dimensions of the tube: Ø140 mm X 2.8 mm X 859 mm (5.5" x 0.1" thickness x 33.8")
    Number of parts: 20 pcs



    These kits are sourced out of Europe. Please allow 4 weeks delivery time from receipt of your order.


    • Specifications of Full-Sized Submarine

      The Virginia class, also known as the SSN-774 class, is a class of nuclear-powered fast attack submarines (hull classification symbol SSN) in service with the United States Navy. The Virginia-class attack submarine is the U.S. Navy’s newest undersea warfare platform and incorporates the latest in stealth, intelligence gathering and weapons systems technology. Attack submarines are designed to seek and destroy enemy submarines and surface ships as well as project power ashore with Tomahawk cruise missiles and Special Operation Forces, carry out Intelligence, Surveillance, and Reconnaissance (ISR) missions; support battle group operations; and engage in mine warfare. Virginia-class submarines are designed for a broad spectrum of open-ocean and littoral (shallow coastal water) missions. They are replacing older Los Angeles-class submarines, many of which have already been decommissioned. The Seawolf-class attack submarine was originally intended to succeed the Los Angeles-class, but production was canceled after only three submarines were produced due to budgeting restraints at the end of the Cold War, and the final submarine was manufactured in 1995. Virginia-class submarines will be acquired through 2043, and are expected to remain in service past 2060. Based on recent updates to the designs, some of the Virginia-class submarines are expected to still be in service in 2070.



      Type: Nuclear attack submarine
      Displacement: 7,900 metric tons (7,800 long tons)
      Length: 377 ft (115 m)
      Beam: 34 ft (10 m)
      Propulsion: S9G reactor 40,000 shp (30 MW)
      Speed: 25 knots (46 km/h) 25 knots (29 mph) or over[2]
      Range: unlimited
      Endurance: Only limited by food and maintenance requirements.
      Test depth: +800 ft (240 m)
      Complement: 135 (15:120)
      Armament:
      • Block I-IV:
      • 12 × VLS (Tomahawk BGM-109) tubes
      • 4 × 533 mm torpedo tubes (Mk-48 torpedo)
      • 37 × torpedoes & missiles (torpedo room)[3]
      • Block V:
      • VPM module (28 Tomahawk BGM-109)
      • 12 × VLS (Tomahawk BGM-109) tubes
      • 4 × 533 mm torpedo tubes (Mk-48 torpedo)
      • 65 × torpedoes & missiles[4]
    $525.00Price
